VEO BH-110S Arca Compatible Dual Axis Ball Head (to 10kg)
VEO BH-110S Arca Compatible Dual Axis Ball Head (to 10kg)
Item: VGTVEOBH110S
Delivery: FREE
Overview

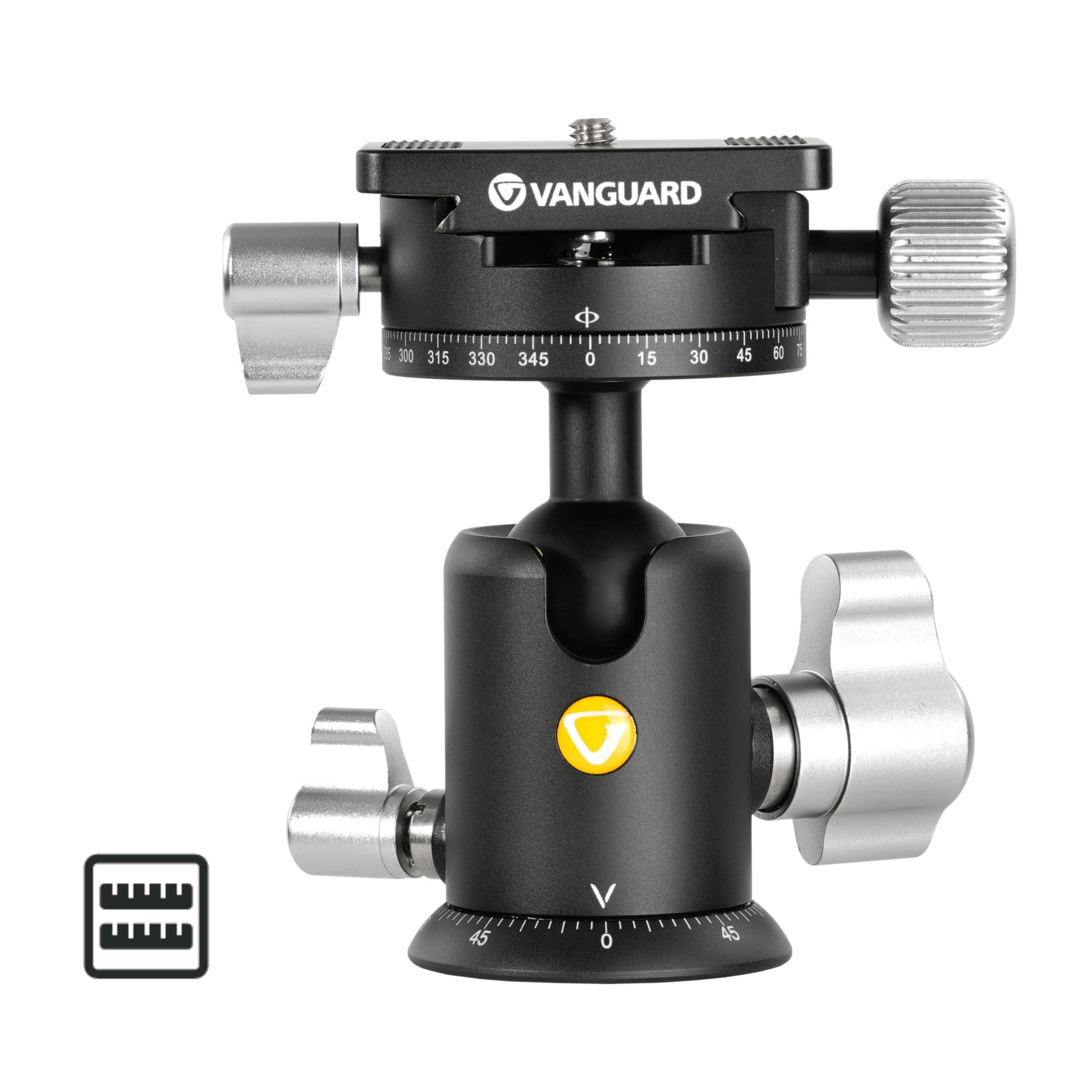

The VEO BH-110S is an Arca compatible ball head with a 10kg/22lbs load capacity, that incorporates Vanguard's Dual Axis System for maximum control and precision when framing your shot.

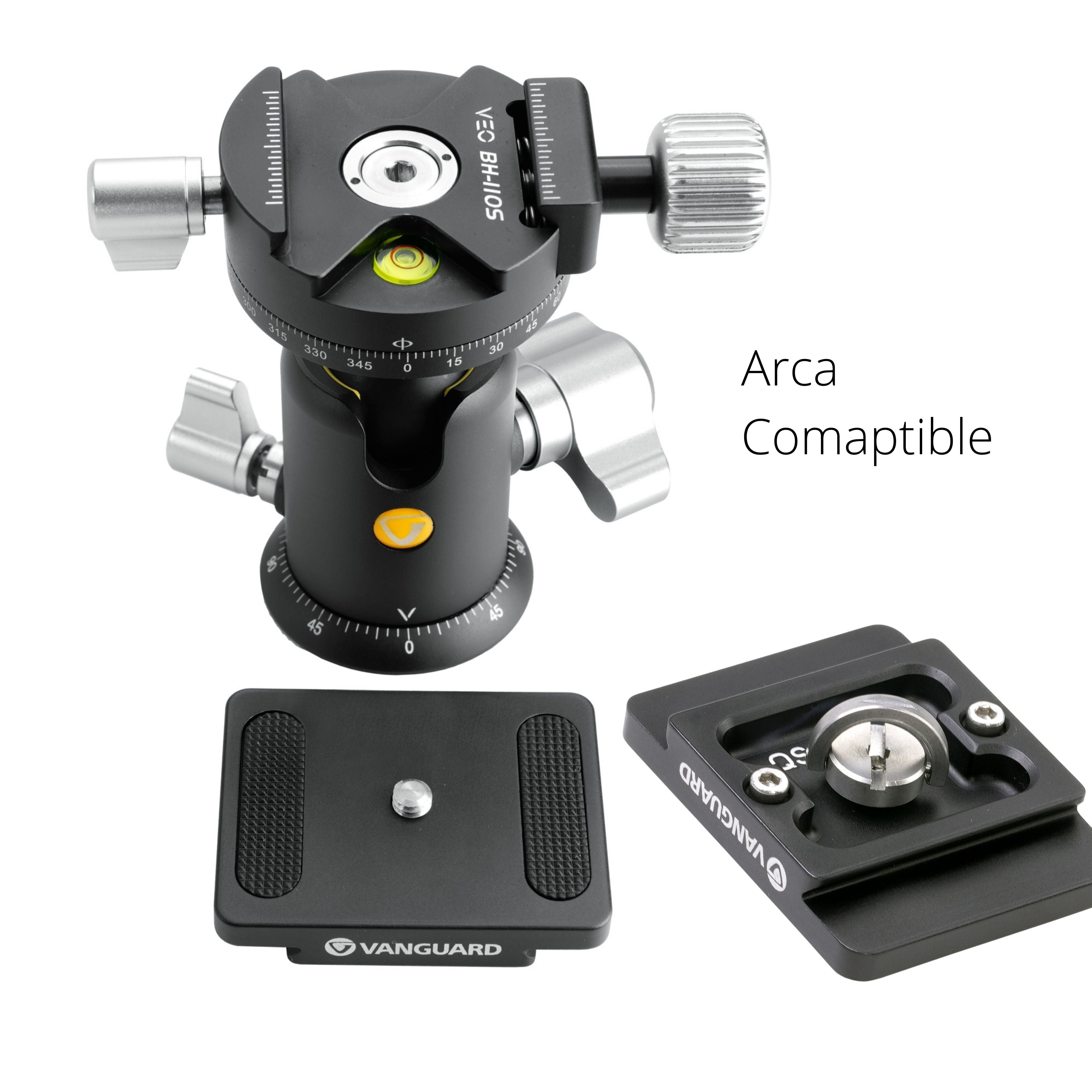

- Arca compatible ball head with removable, anti-slip screws on the base of the quick release plate
- Two 360° panning knobs, one on the base and the second under the quick release plate
- Level your tripod in seconds using the head, no need to fuss with the tripod legs
- 50mm diameter base that makes it more suitable for travel sized tripods (includes fittings for 3/8" or 1/4" threads)
- Precision CNC machined from aircraft-grade aluminium for maximum stability
Once you've experienced the versatility of the new dual axis system, you'll never go back, and this series has received some great reviews, such as the review from Amateur Photographer and Digital Camera World on the VEO BH-160S. To see the full range, click here and #MakeUpYourOwnMind

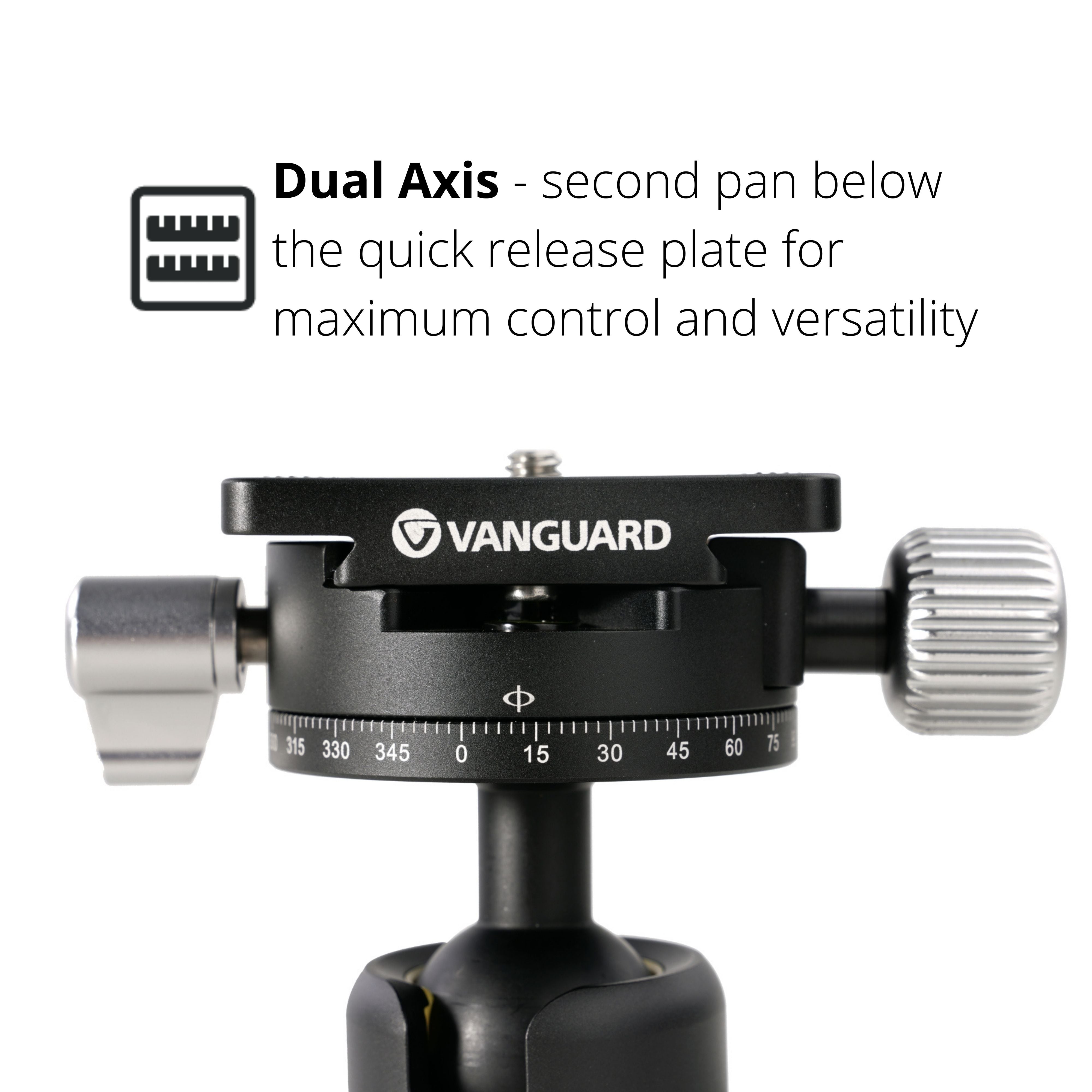

The VEO BH-110S is an Arca compatible ball head that introduces a second pan axis under the quick release plate mount to deliver maximum control in framing your perfect shot.
One of the key benefits of the dual axis is that it allows you to level your tripod in seconds on any terrain for perfect panoramas, without needing to fuss around with the legs. Simply make sure your tripod is steady and level the head and you're ready to go, using the top axis to frame or pan your photo.
One of the key benefits of the dual axis is that it allows you to level your tripod in seconds on any terrain for perfect panoramas, without needing to fuss around with the legs. Simply make sure your tripod is steady and level the head and you're ready to go, using the top axis to frame or pan your photo.
Alternatively, the dual axis ball head allows you make micro adjustments using the most appropriate axis, without needing to loosen the main ball joint and risk losing the overall setup.

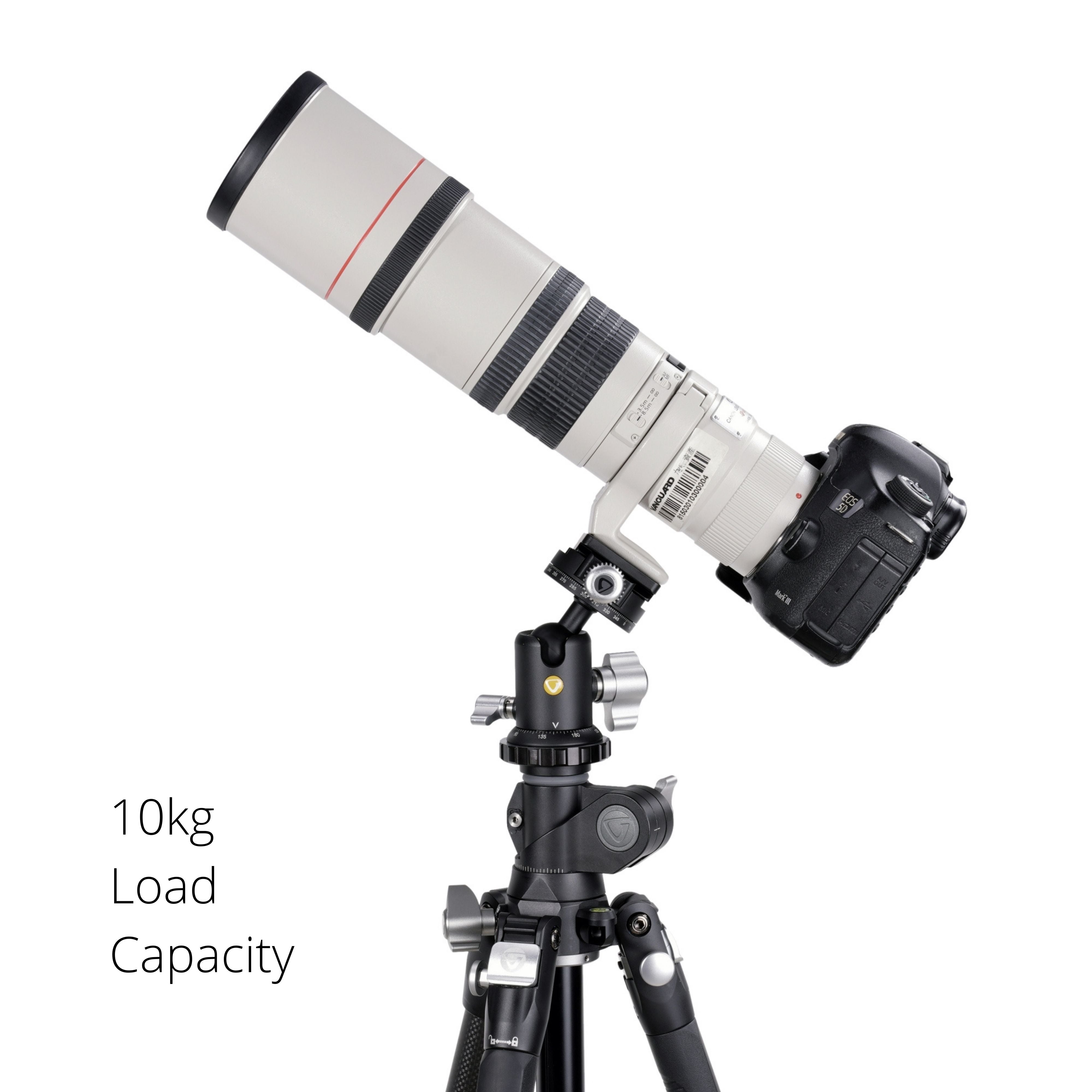

Despite weighing in at just 430g with a 28mm ball, this head has a maximum load capacity of 10kg/22lbs and is machined from aircraft grade aluminium using the latest CNC technology. This means that as well as holding almost any kit, the movement is incredibly precise due to the mirror smooth finish that CNC production delivers.

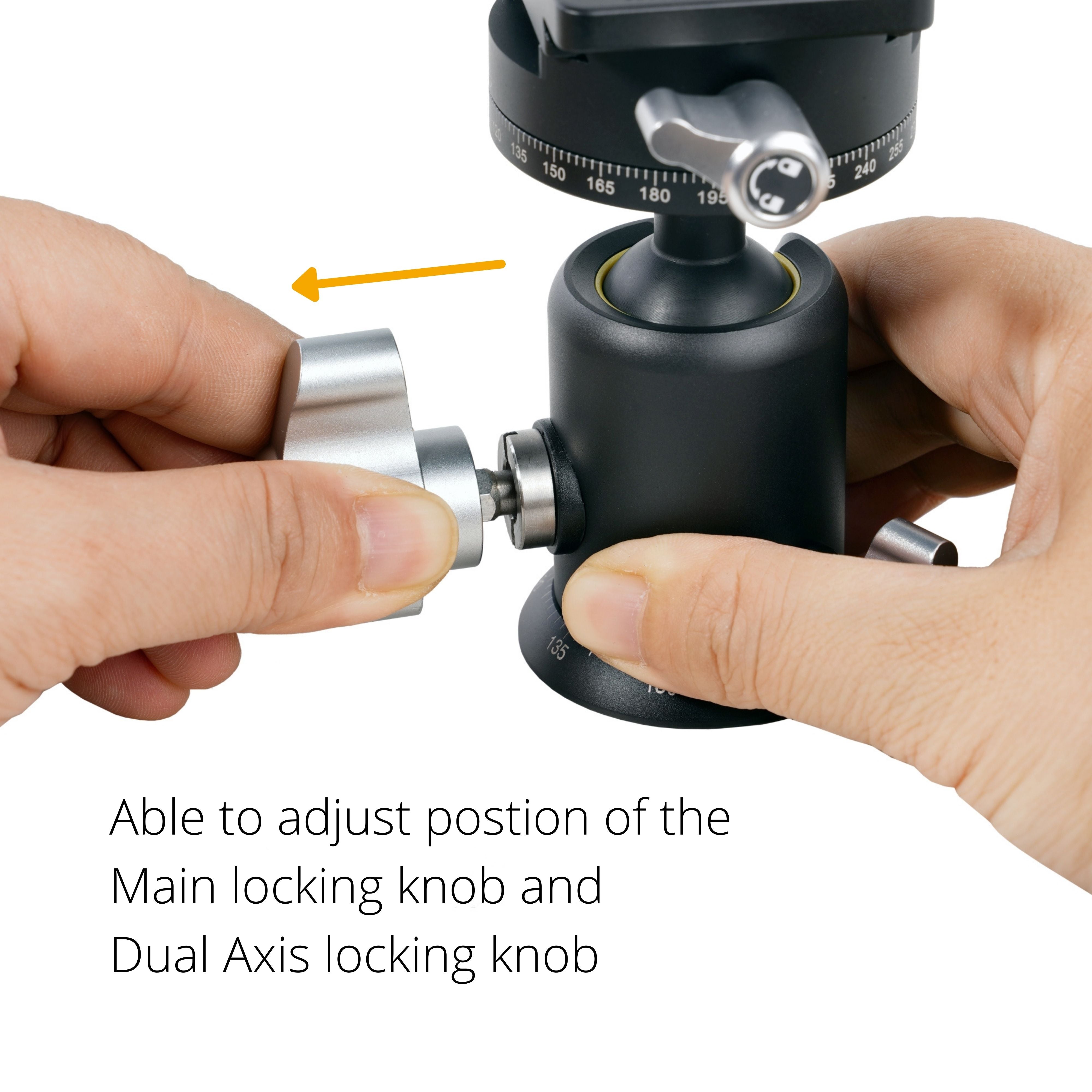

The head includes easy grip locking knobs, and the top pan locking knob and the main ball locking knob can be pulled out and repositioned to more convenient positions, without affecting the solidity of the head.

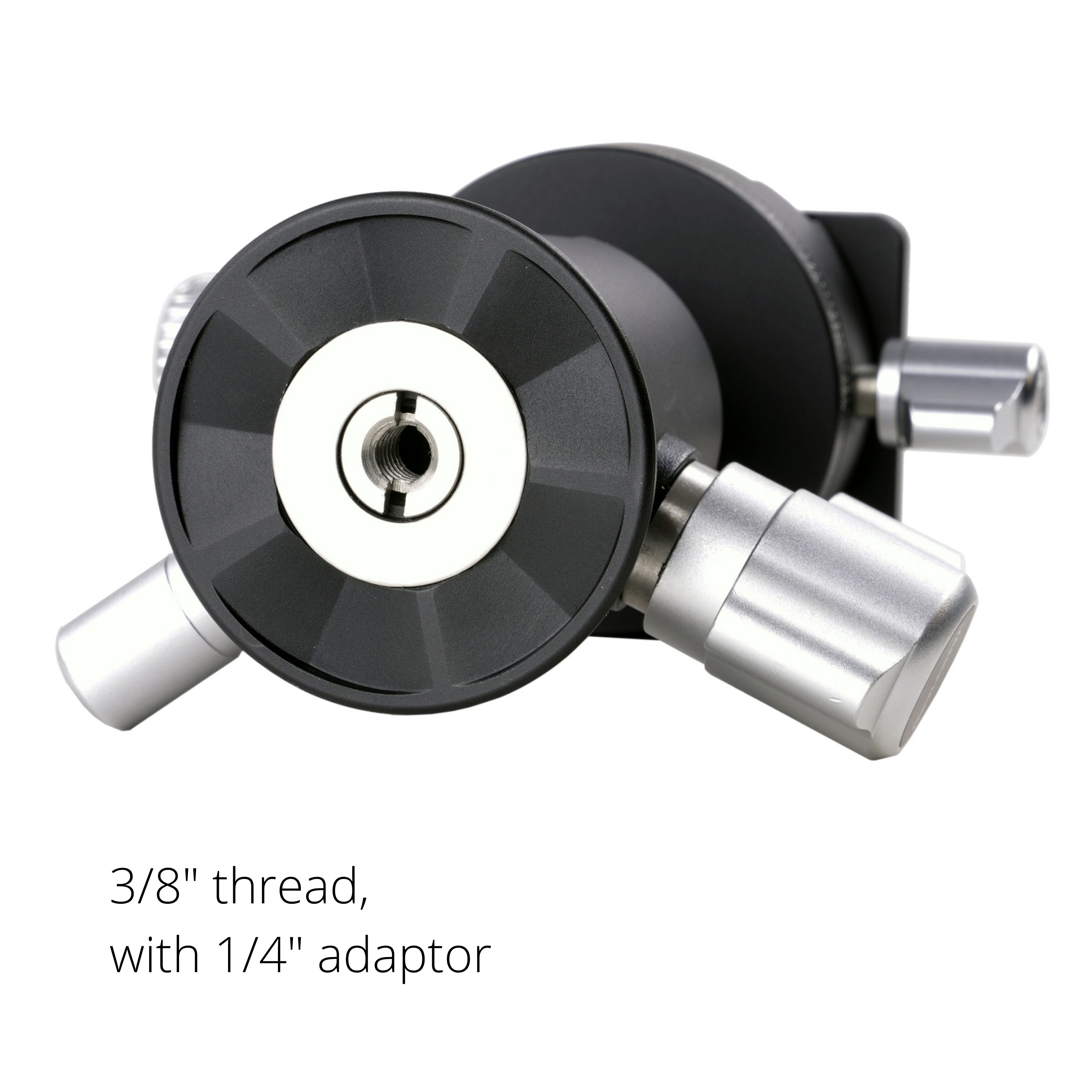

With a 50mm diameter base it is more suitable for a smaller, travel sized tripod with a 1/4" thread (but can be used with any tripod with a 3/8" thread by removing the adaptor provided).
You can get a feel for the heads with this product video featuring the VEO BH-250S:
So if you're looking for an incredibly solid Arca ball head that won't let you down, check out the VEO BH Series and #makeupyourownmind
| Head Style | Ball Head | Ball Head |
|---|---|---|
| Handles | None | None |
| Model Number | VEO BH-110S | VEO BH-110S |
| Arca Swiss Compatible | Yes | Yes |

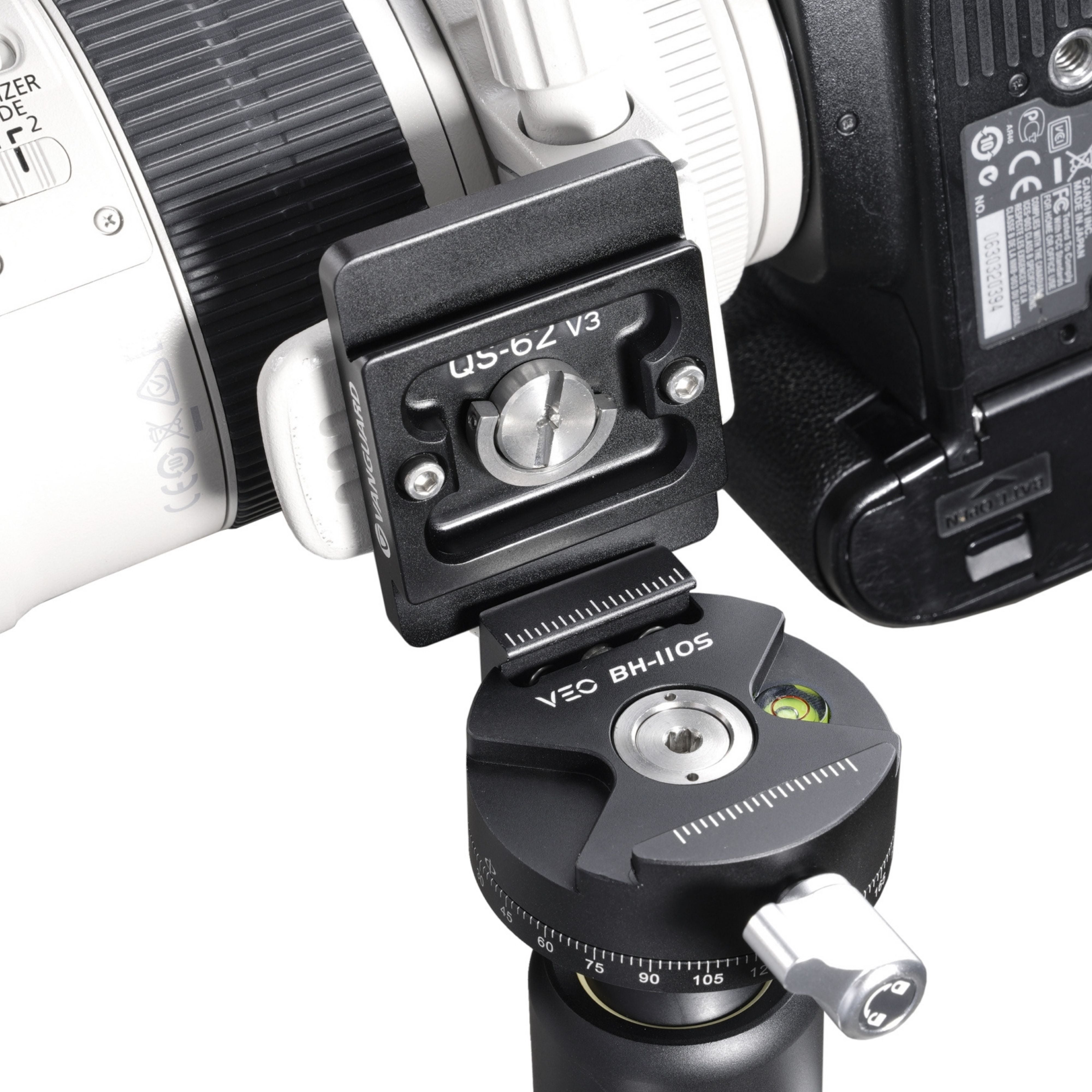

| Quick Shoe | QS-62 V3 | QS-62 V3 |
| Maximum Load Capacity | 22lbs | 10kg |
| Separate Pan Lock | Yes (two) | Yes (two) |
| Friction Control | No | No |
| Swivel | 360° | 360° |
| Spirit Bubble Levels | 1 | 1 |
| Width | 4 1/10 inches | 105mm |
| Height | 4 1/10 inches | 105mm |
| Base Diameter | 2 inches | 50mm |
| Head Attachment Thread | 1/4" and 3/8" | 1/4" and 3/8" |
| Weight | 15 oz | 427g |
| Accessories | Quick Shoe and 1/4" to 3/8" adaptor thread included | Quick Shoe and 1/4" to 3/8" adaptor thread included |
| Suitable For Mirrorless | Yes | Yes |
| Suitable For DSLR | Yes | Yes |
| Suitable For PRO Kit | Yes | Yes |
| Warranty | 2 Years | 2 Years |
| Extended Warranty | 10 Years | 10 Years |
| Series | VEO Heads | VEO Heads |
| Colour | Black | Black |
| Other | Dual Axis for precise control | Dual Axis for precise control |
The VEO BH-110S is an Arca compatible ball head that introduces a second pan axis under the quick release plate mount to deliver maximum control in framing your perfect shot.
One of the key benefits of the dual axis is that it allows you to level your tripod in seconds on any terrain for perfect panoramas, without needing to fuss around with the legs. Simply make sure your tripod is steady and level the head and you're ready to go, using the top axis to frame or pan your photo.
One of the key benefits of the dual axis is that it allows you to level your tripod in seconds on any terrain for perfect panoramas, without needing to fuss around with the legs. Simply make sure your tripod is steady and level the head and you're ready to go, using the top axis to frame or pan your photo.
Alternatively, the dual axis ball head allows you make micro adjustments using the most appropriate axis, without needing to loosen the main ball joint and risk losing the overall setup.
Despite weighing in at just 430g with a 28mm ball, this head has a maximum load capacity of 10kg/22lbs and is machined from aircraft grade aluminium using the latest CNC technology. This means that as well as holding almost any kit, the movement is incredibly precise due to the mirror smooth finish that CNC production delivers.
The head includes easy grip locking knobs, and the top pan locking knob and the main ball locking knob can be pulled out and repositioned to more convenient positions, without affecting the solidity of the head.
With a 50mm diameter base it is more suitable for a smaller, travel sized tripod with a 1/4" thread (but can be used with any tripod with a 3/8" thread by removing the adaptor provided).
You can get a feel for the heads with this product video featuring the VEO BH-250S:
So if you're looking for an incredibly solid Arca ball head that won't let you down, check out the VEO BH Series and #makeupyourownmind
| Head Style | Ball Head | Ball Head |
|---|---|---|
| Handles | None | None |
| Model Number | VEO BH-110S | VEO BH-110S |
| Arca Swiss Compatible | Yes | Yes |
| Quick Shoe | QS-62 V3 | QS-62 V3 |
| Maximum Load Capacity | 22lbs | 10kg |
| Separate Pan Lock | Yes (two) | Yes (two) |
| Friction Control | No | No |
| Swivel | 360° | 360° |
| Spirit Bubble Levels | 1 | 1 |
| Width | 4 1/10 inches | 105mm |
| Height | 4 1/10 inches | 105mm |
| Base Diameter | 2 inches | 50mm |
| Head Attachment Thread | 1/4" and 3/8" | 1/4" and 3/8" |
| Weight | 15 oz | 427g |
| Accessories | Quick Shoe and 1/4" to 3/8" adaptor thread included | Quick Shoe and 1/4" to 3/8" adaptor thread included |
| Suitable For Mirrorless | Yes | Yes |
| Suitable For DSLR | Yes | Yes |
| Suitable For PRO Kit | Yes | Yes |
| Warranty | 2 Years | 2 Years |
| Extended Warranty | 10 Years | 10 Years |
| Series | VEO Heads | VEO Heads |
| Colour | Black | Black |
| Other | Dual Axis for precise control | Dual Axis for precise control |
