VEO 5XT 235ALB Aluminium Travel Tripod & Ball Head - 15kg load capacity
VEO 5XT 235ALB Aluminium Travel Tripod & Ball Head - 15kg load capacity
Item: VGTVEO5XT235ALB45S
Delivery: FREE
Overview
Available from April/May 2025

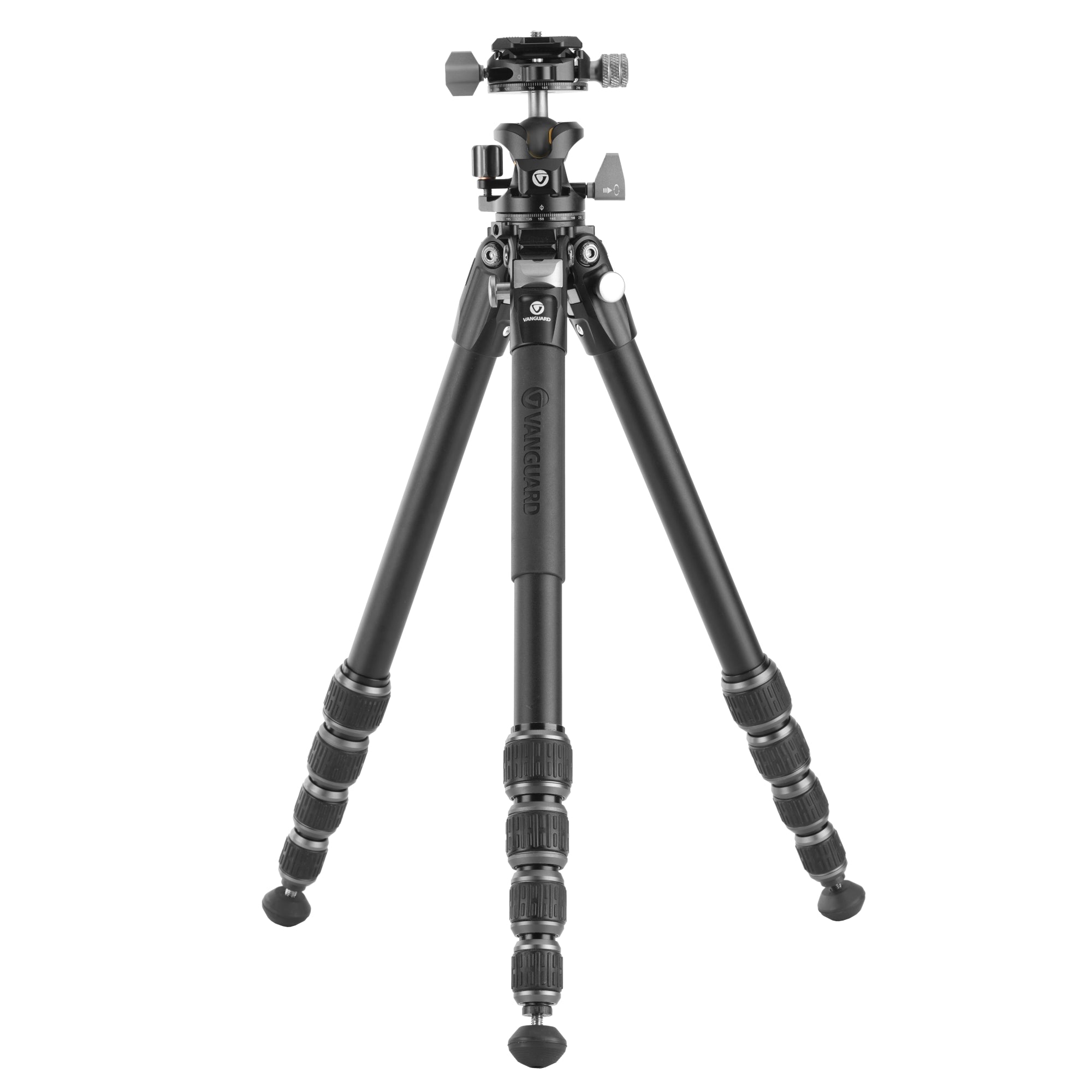

The VEO 5X 235ALB 45S is a CNC machined aluminium travel tripod without a central column that delivers an optimal balance between portability and stability, fitted with a lightweight and low profile LB-45S ball head.

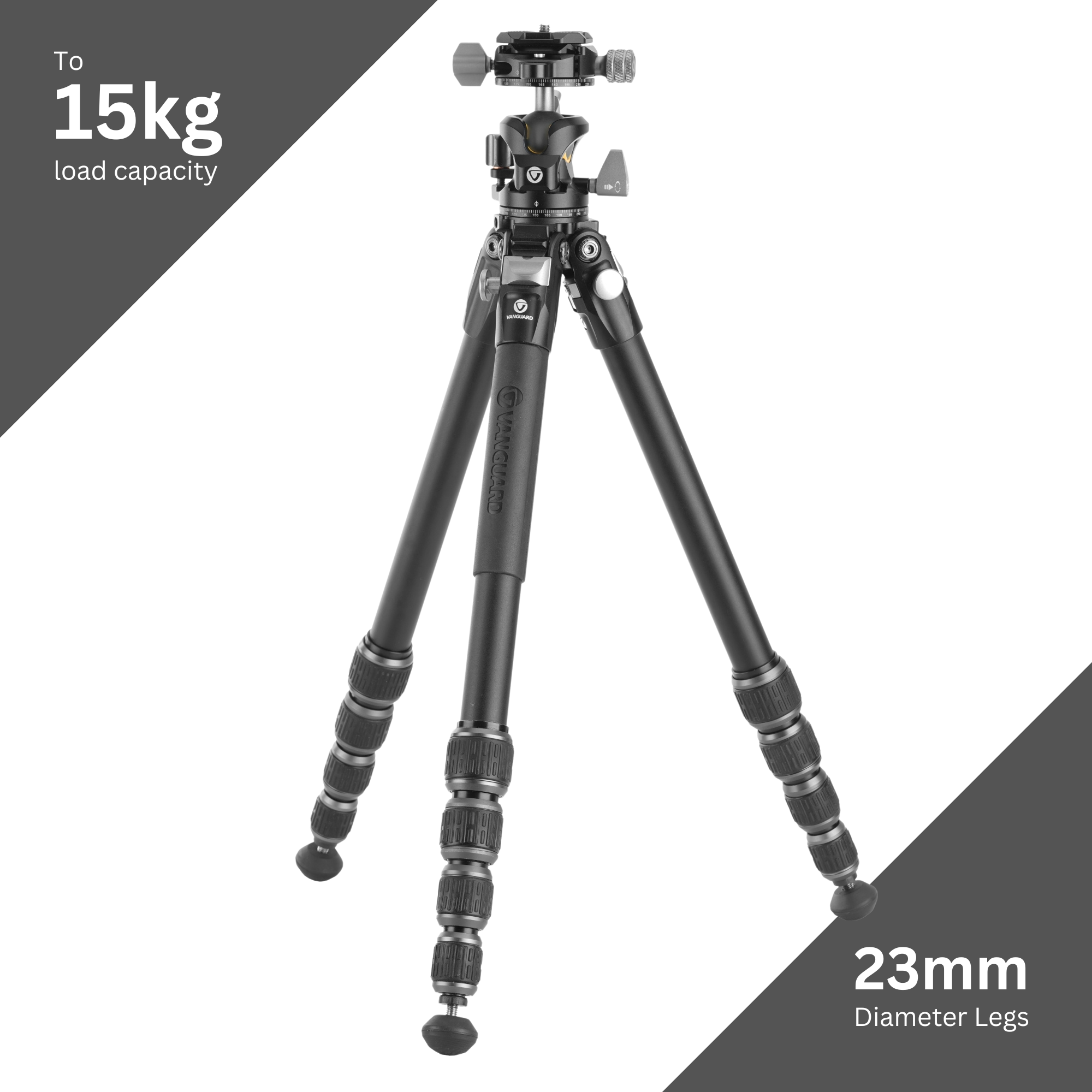

- 5-section aluminium tripod kit with 23mm diameter legs and 15kg load capacity
- Fitted with an Arca compatible dual axis ball head
- Weighs 1415g and folds to 50.5cm with a slim, easy carry 7.5cm diameter
- Extends to 134cm without a central column
- Includes a separate central column and extends 166cm when attached
- Noise-free and easy clean twist lock leg adjustments
- Three easy-set leg angles (23°, 50° and 85°) allowing low angle or macro shots
- Threads with bayonet fittings for attaching magic arms like the VEO TSA DLX
- Retractable rubber or spiked feet, with a luxury padded tripod bag
Click here to see the full range
Click here to be notified when this product is available

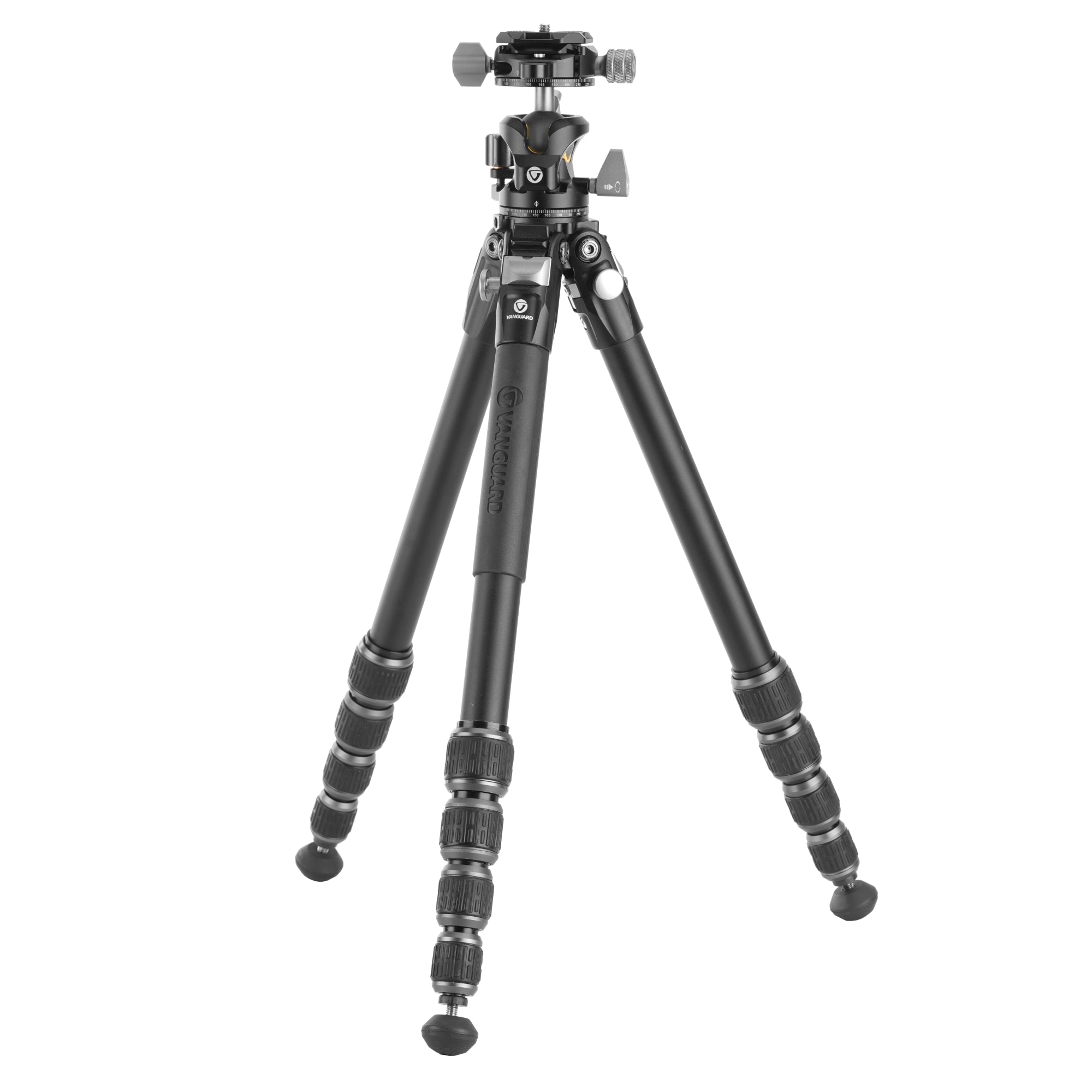

The VEO 5XT 235ALB 45S is a CNC machined aluminium travel tripod with a low profile Arca compatible dual axis ball head.

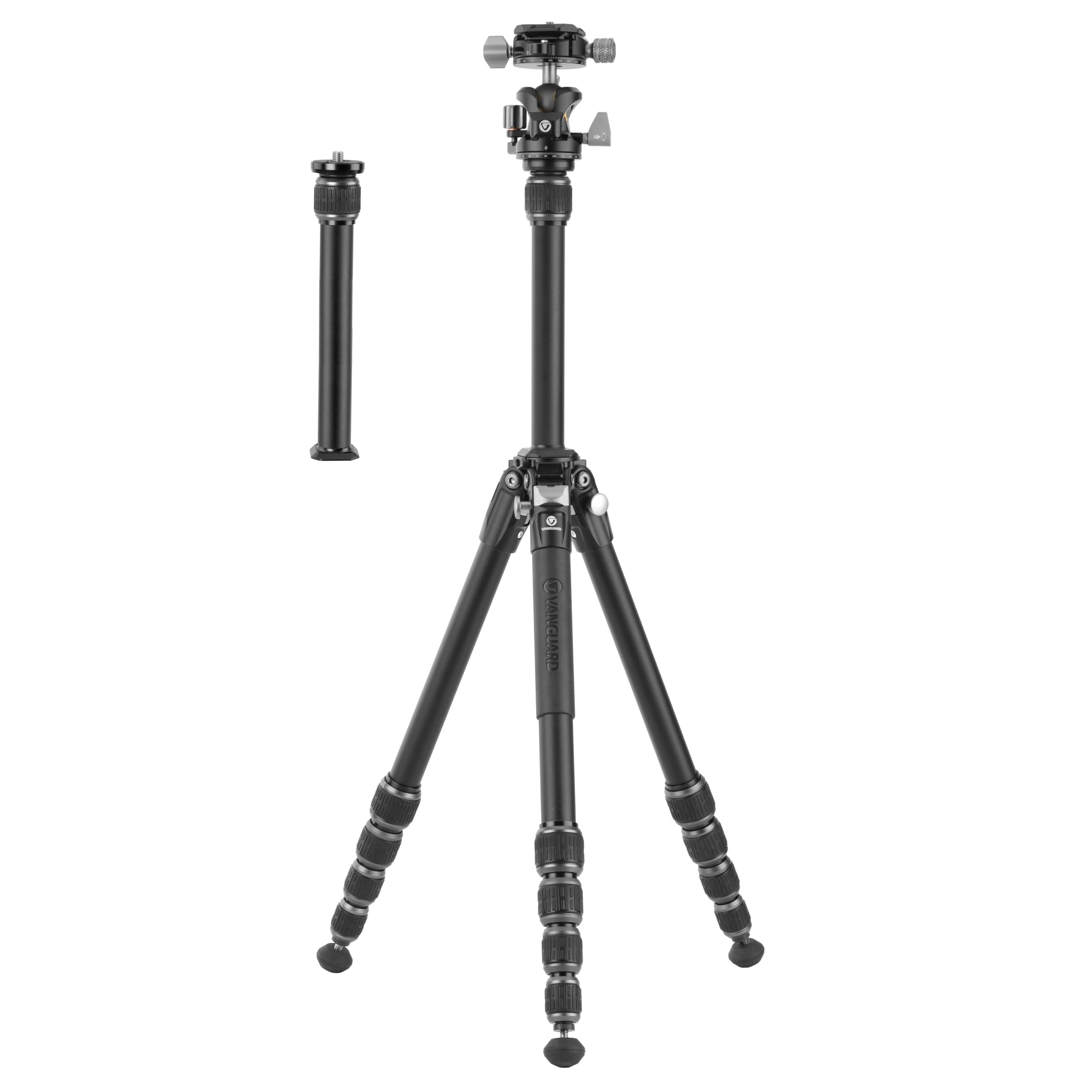

This VEO 5X travel tripod is designed to be extra portable with a simple flat tripod base for maximum stability, and a separate central column for those moments when extra height is needed.

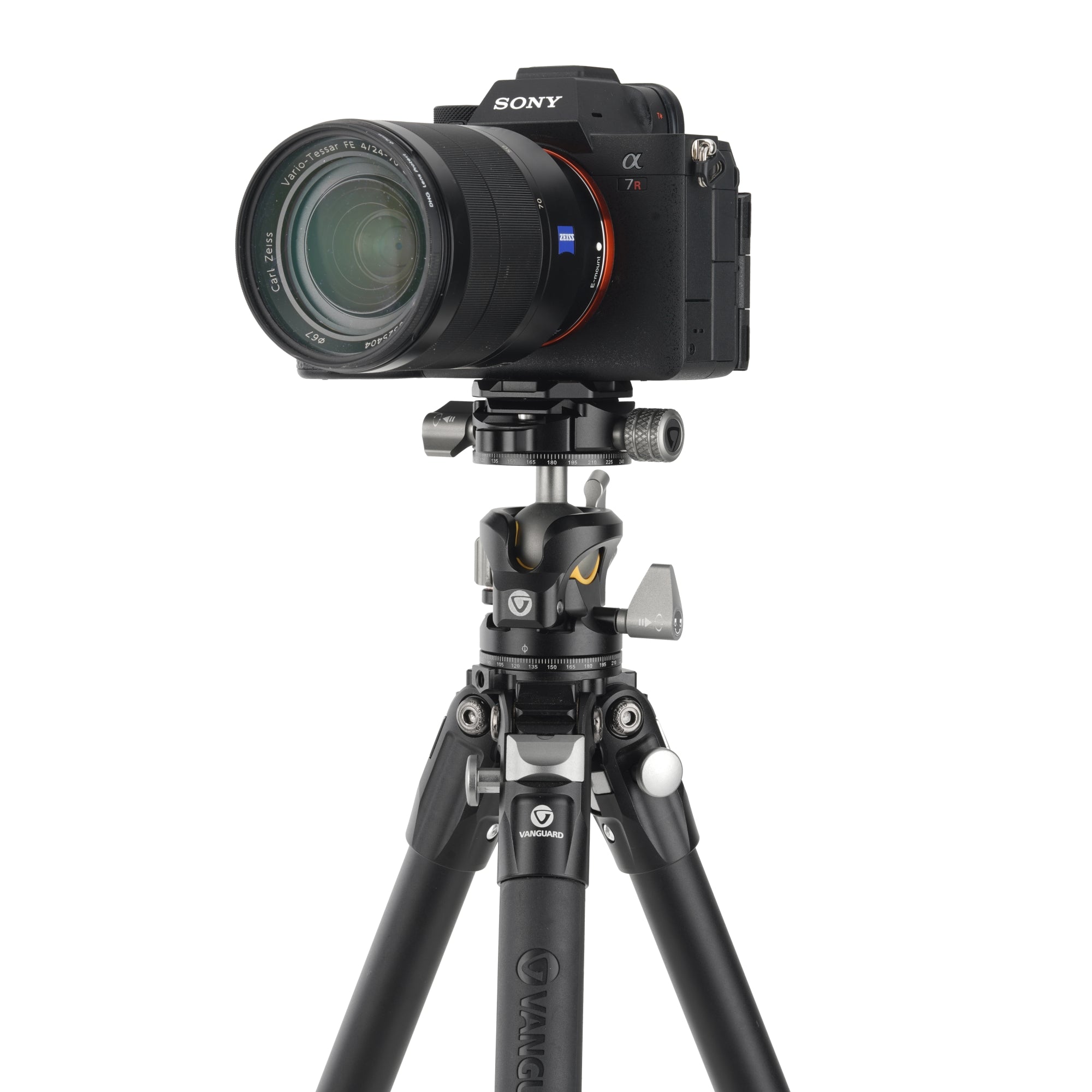

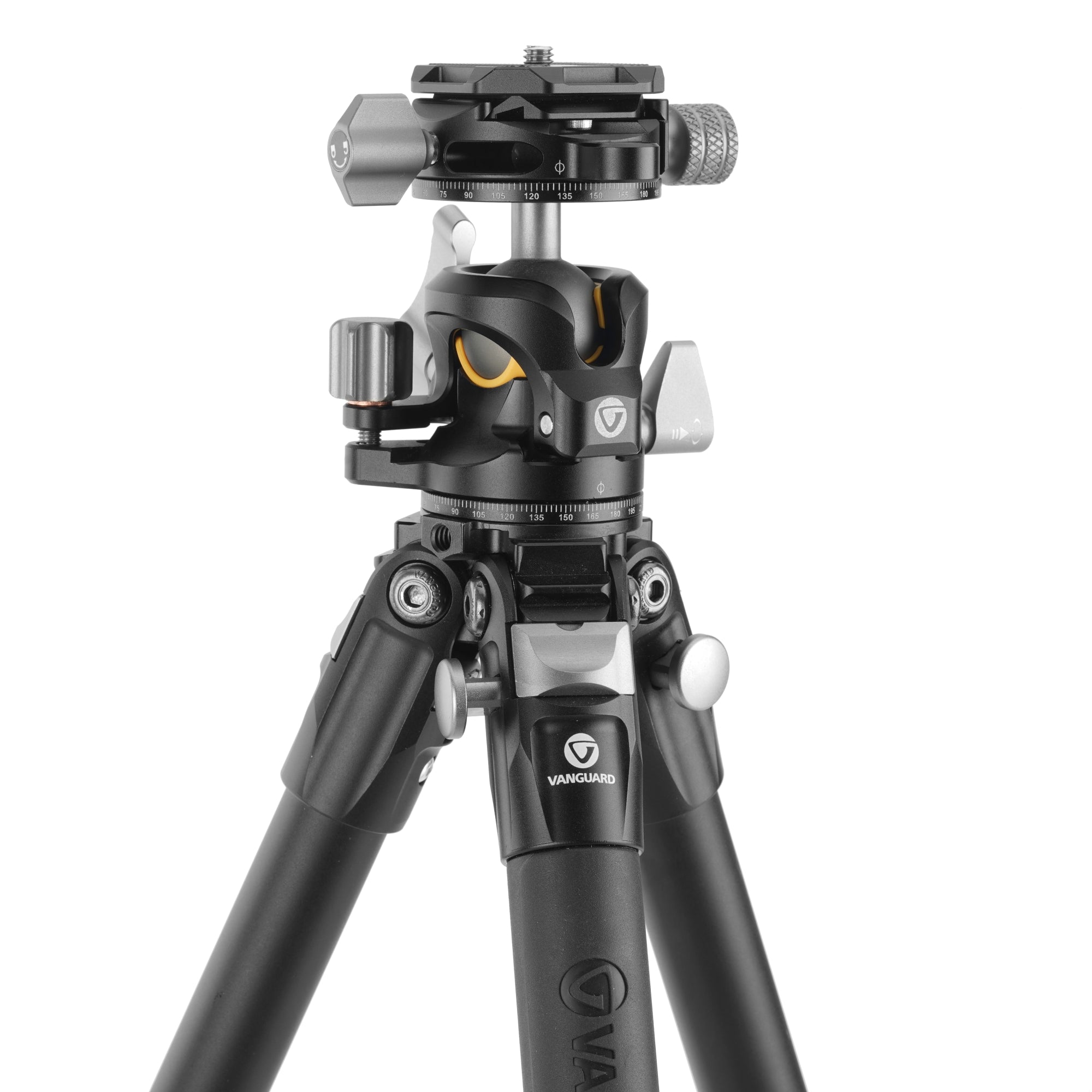

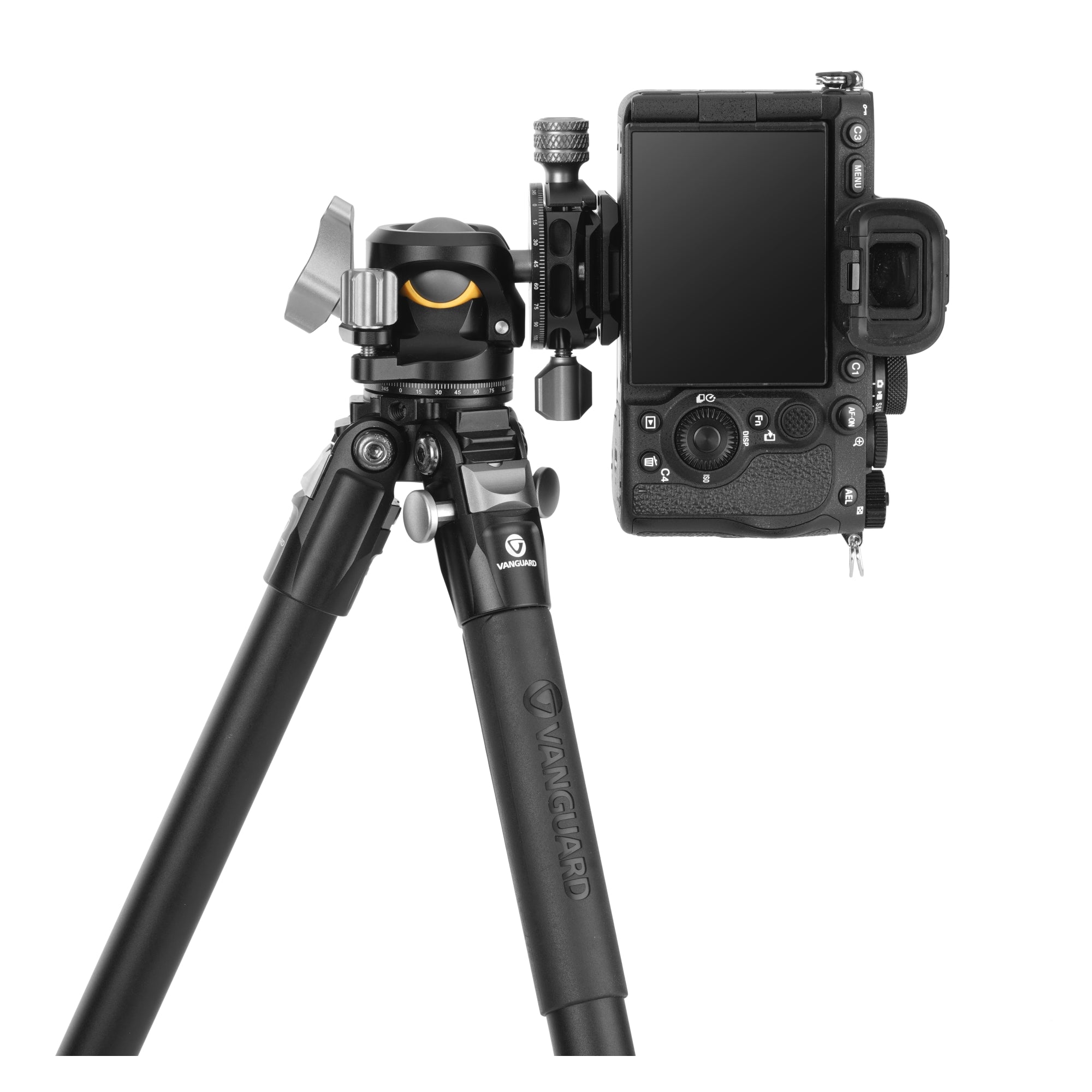

On top is a lightweight, low profile Arca compatible LB-45S ball head that has the traditional pan axis on the base, and introduces a second pan axis under the quick release plate mount to allow you to level your tripod in seconds and deliver maximum control in framing your perfect shot.
The 5-section, 23mm diameter legs are designed to deliver an optimum combination of stability and portability, reaching up to 134cm without the central column, and extends to 166cm if you attach the central column.

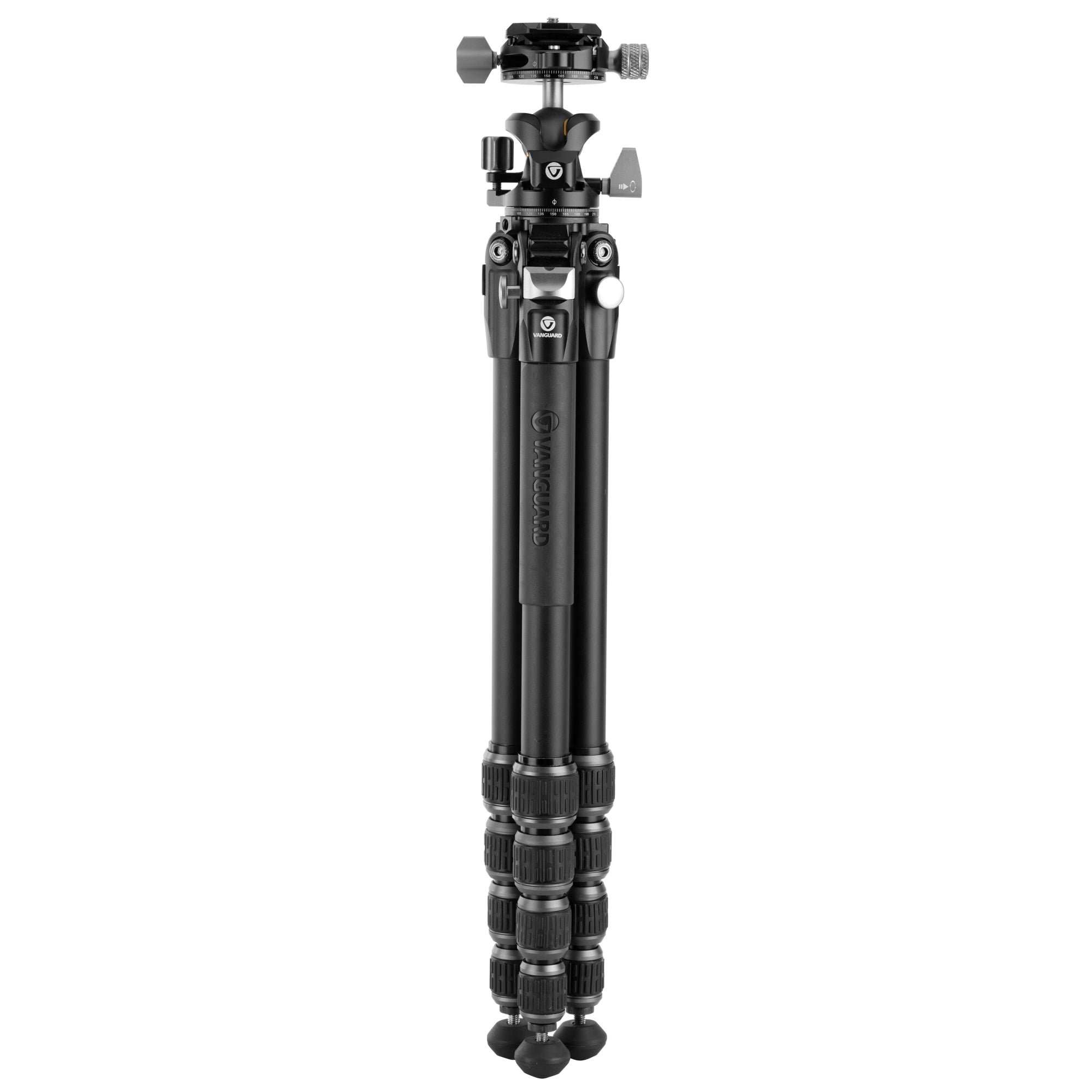

Without the centre column attached the tripod folds to 50.5cm with a slim 7.5cm diameter that makes it easy to carry in one hand or pack away, and weighs just 1415g. Despite this portability, it can hold up to 15kg ensuring it can cope with even the heaviest kit.
The solid legs also incorporate silent twist leg locks with Vanguard's technical design that is designed to be quick to set up/pack away and be easy to clean, allowing you to maximise the life of your tripod. For full cleaning instructions, view our blog.

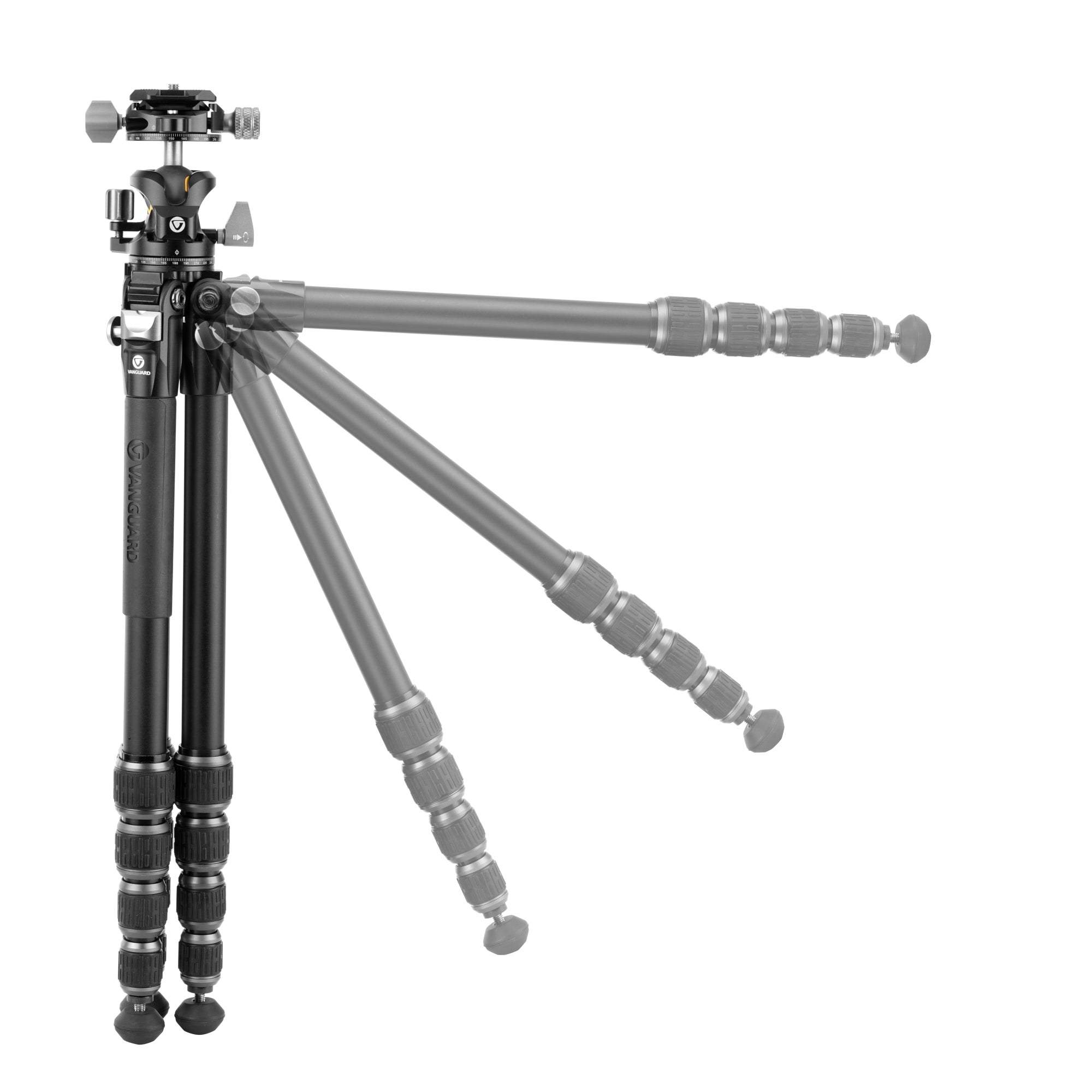

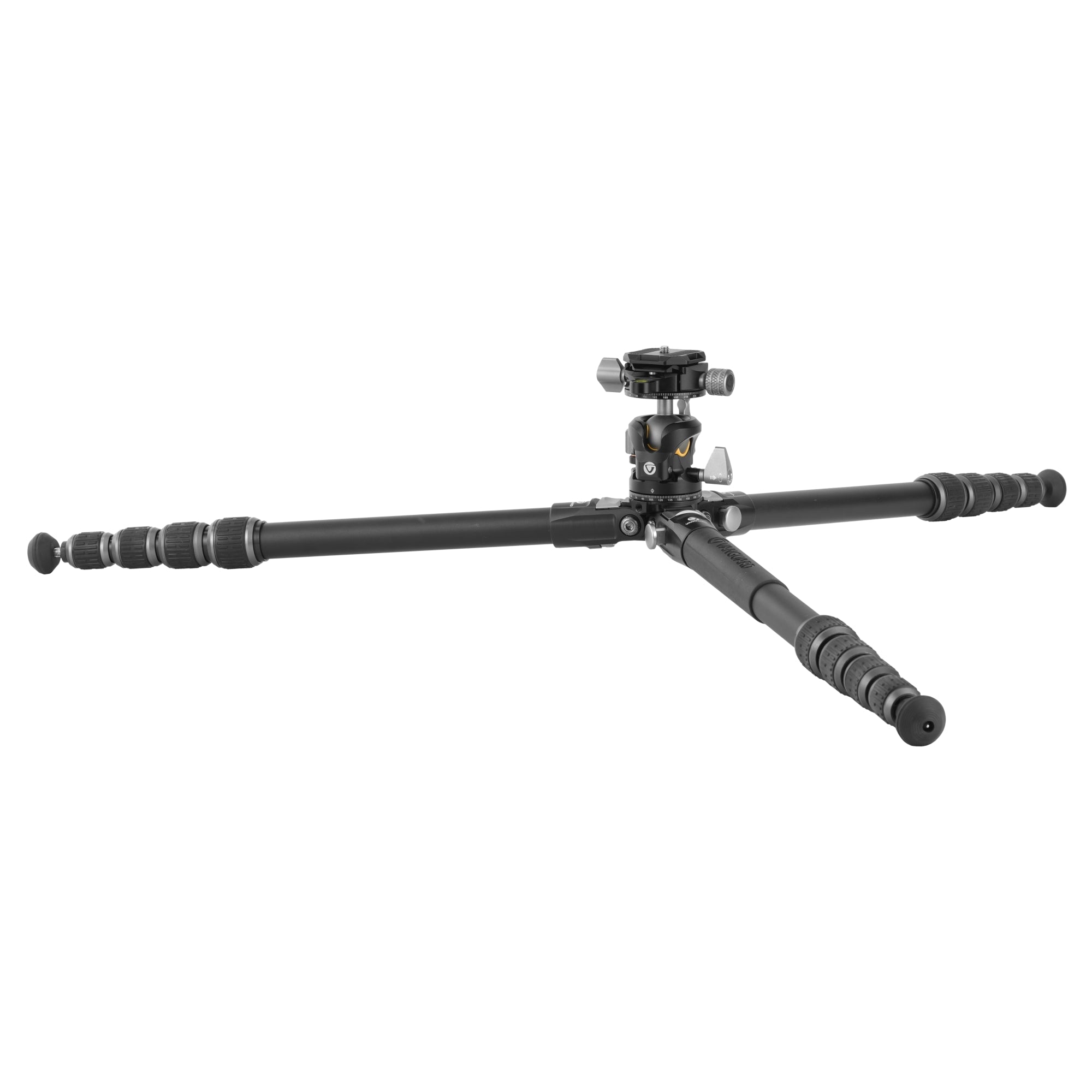

For low angle or macro shots the tripod is equipped with three easy-set leg angles, (23°, 50° and 85°), allowing the tripod to go down to just 15.5cm.
On the side of the tripod canopy is a a 3/8" thread hole with a 1/4" adaptor that is designed to fit any magic arm, allowing you to attach accessories to maximise your shoot. This also includes Vanguard's non-slip bayonet slot fittings, so it guarantees that when used with a VEO TSA DLX your magic arm won't come lose in the middle of your shot.

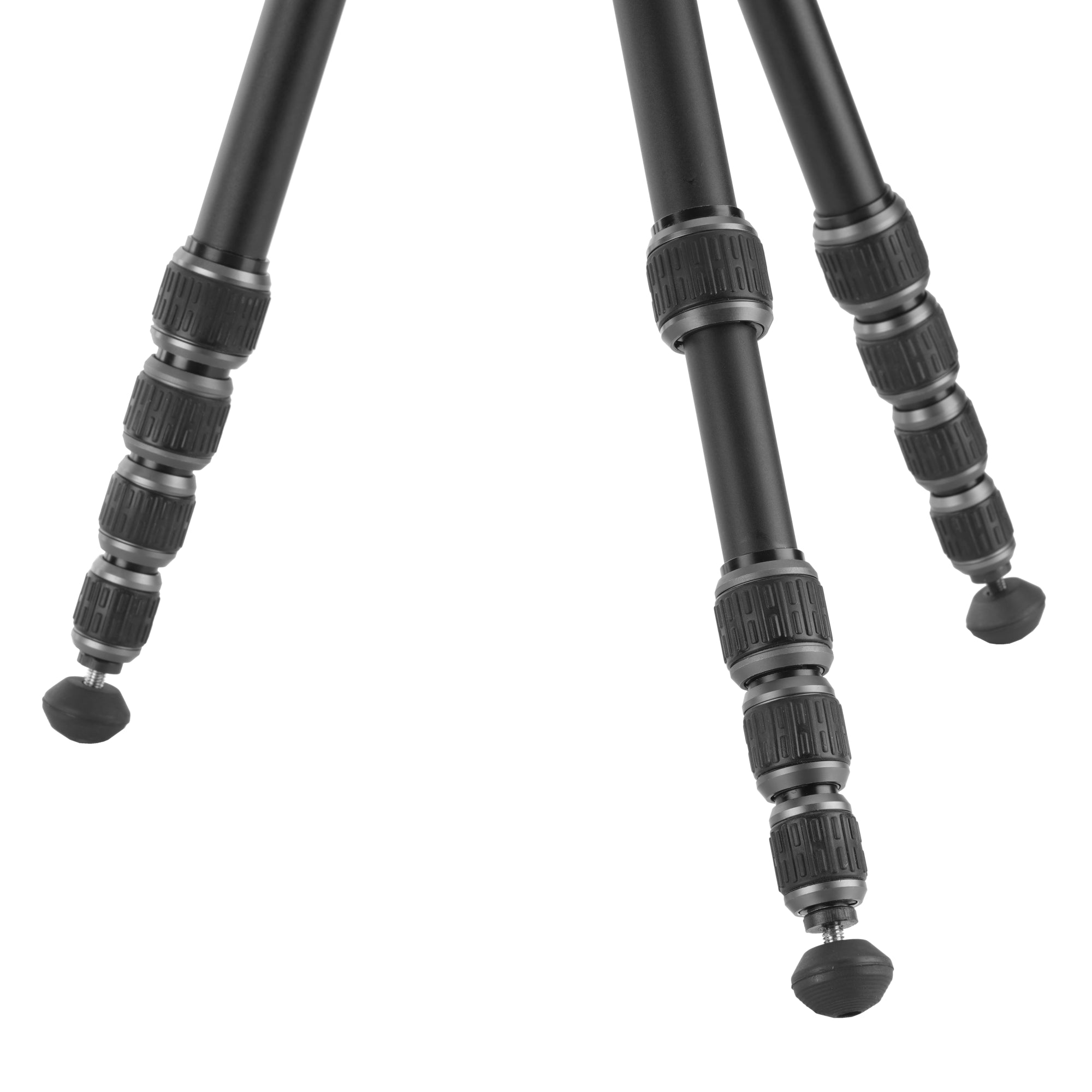

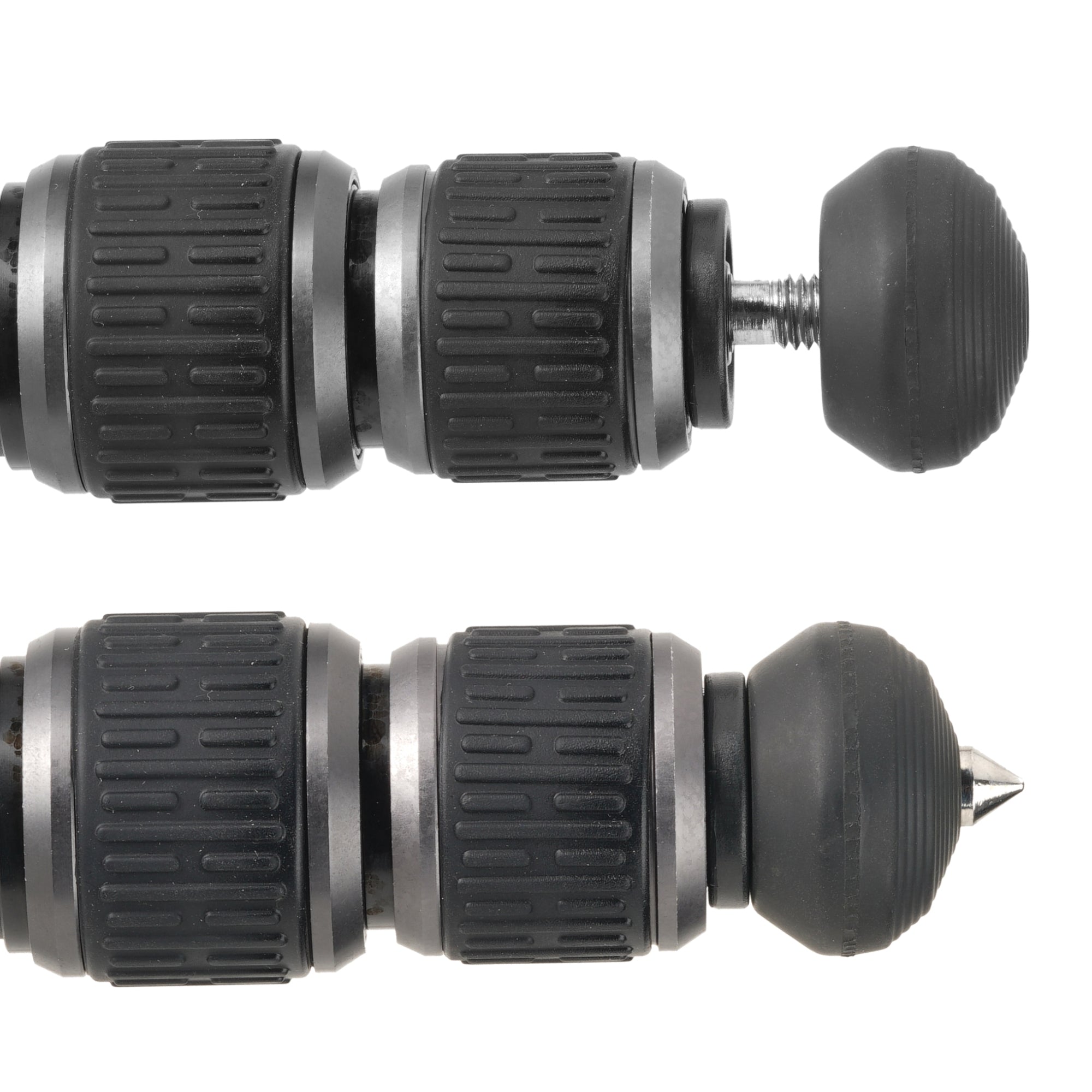

At the base, there are retractable rubber feet that can be set as either rubber or stainless steel spiked feet in seconds.
This tripod is manufactured with Vanguard's CNC technology, using aircraft grade aluminium for load bearing parts, alongside Vanguard's anodising process to ensure outstanding quality that is backed by a standard 2 year warranty, but this can be extended to a 10 year extended manufacturer's warranty.

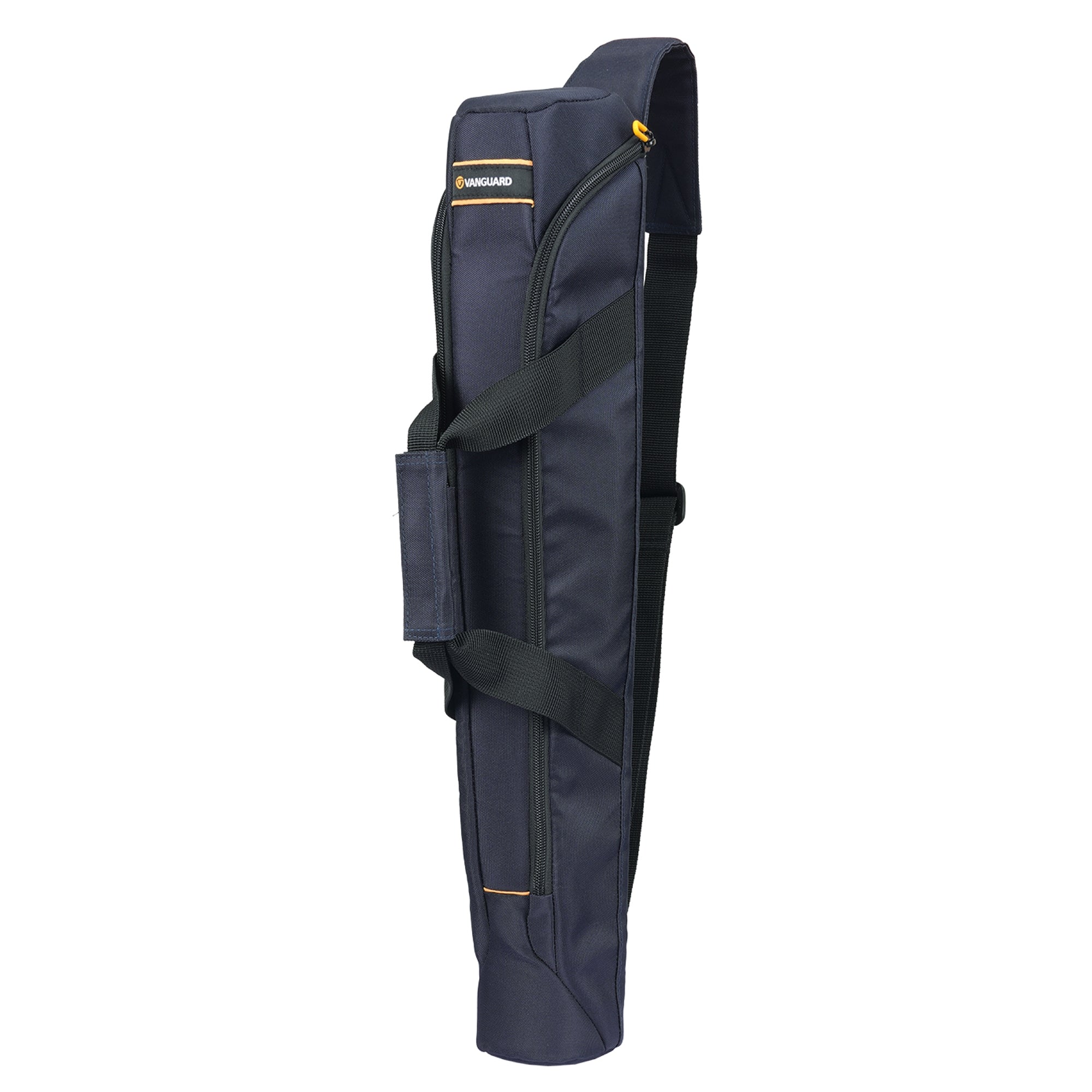

The tripod also comes with a luxury padded shoulder bag to keep it safe at home or on the go and make it easy to carry, with quick top access or full length access.
The VEO 5X Series comes with other sizes that you may wish to consider, and these are summarised below:
So if you're looking for a tripod with that perfect blend of portability and stability, check out the VEO 5X Series and #makeupyourownmind
| Tripod Style | Travel Sized Photography Tripod | Travel Sized Photography Tripod |
|---|---|---|
| Central Column | Yes (separate) | Yes (separate) |
| Levelling Base | No (can attach LVL-45 which is available separately) | No (can attach LVL-45 which is available separately) |
| Material | Aluminium | Aluminium |
| Weight | 3.1lbs | 1415g |
| Folded Length | 19 9/10 inches | 505mm |
| Folded Diameter | 3 inches | 7.5cm |
| Maximum Height Central Column Attached | 65 2/5 inches | 1660mm |
| Maximum Height Without Central Column | 42 4/5 inches | 1340mm |
| Minimum Height | 6 1/10 inches | 155mm |
| Maximum Load Capacity | 33lbs | 15kg |
| Leg Diameter | 9/10 inches | 23mm |
| Leg Sections | 5 | 5 |
| Leg Lock | Easy clean twist lock | Easy clean twist lock |
| Leg Angles | 3 (23°, 50° and 85°) | 3 (23°, 50° and 85°) |
| Feet Type | Retractable Rubber Feet and Spiked Feet | Retractable Rubber Feet and Spiked Feet |
| Hook For Hanging Extra Weight | Yes | Yes |
| Monopod Leg | No | No |
| Centre Column Plate Diameter | 1 3/4 | 45mm |
| Head Attachment Thread | 1/4" and 3/8" | 1/4" and 3/8" |
| Tripod Head | LB-45S | LB-45S |
| Head Style | Dual Axis Low Profile Ball Head | Dual Axis Low Profile Ball Head |
| Arca Swiss Compatible | Yes | Yes |
| Quick Shoe | QS-58 | QS-58 |
| Separate Pan Lock | Yes | Yes |
| Friction Control | Yes | Yes |
| Bubble Level on Head | Yes | Yes |
| Tripod Bag | Yes (luxury padded) | Yes (luxury padded) |
| Accessories | Luxury Tripod Bag | Luxury Tripod Bag |
| Suitable For Mirrorless | Yes | Yes |
| Suitable For DSLR | Yes | Yes |
| Suitable For Long Lens | Yes, but would recommend the VEO 5X 304ALB 55S | Yes, but would recommend the VEO 5X 304ALB 55S |
| Suitable for Video Camera | No (unless attach LVL-45 which is available separately) | No (unless attach LVL-45 which is available separately) |
| Suitable For Spotting Scope | No | No |
| Suitable For PRO Kit | Yes | Yes |
| Warranty | 2 Years | 2 Years |
| Extended Warranty | 10 Years | 10 Years |
| Series | VEO 5X Tripods | VEO 5X Tripods |
| Colour | Black | Black |
| Other | - | - |
